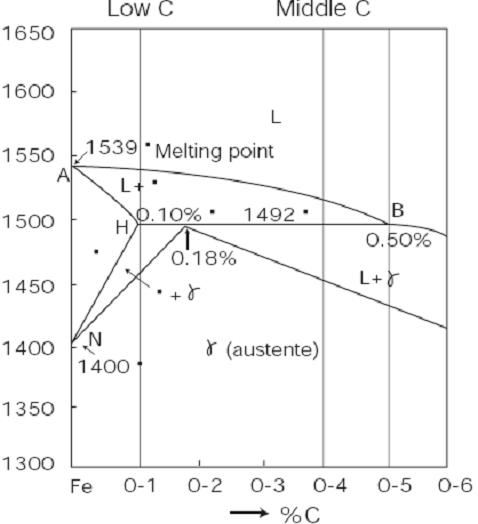

Almost all transformation from δ iron to γ iron for low carbon steel proceeds in the solidus phase.
Shrinkage of billet is directly influenced by shrinkage due to transformation.

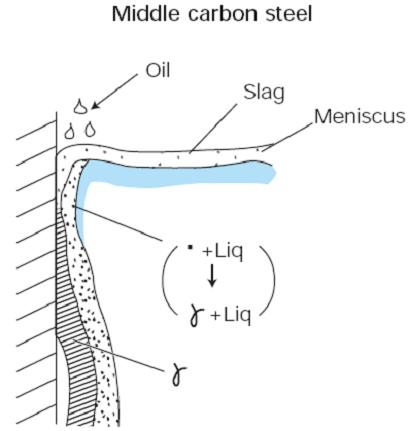

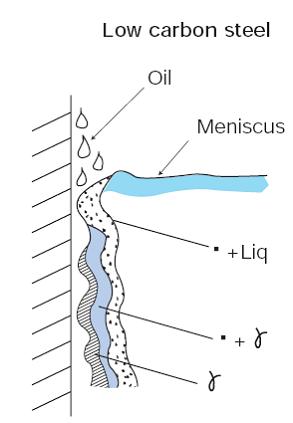

This results in uneven shell surface and delayed shell formation because of less contact of shell and mould wall as shown in the figure.
